Feinstimmerfür Violine

new finetuner for violin

+++ 03.06.2019 +++

Hiermit veröffentliche ich meine Idee für einen neuartigen Feinstimmer für die E-saite einer Violine. Da eine Patentierung zu aufwändig ist und ein bekannter Hersteller kein Interesse gezeigt hat,ist diese Erfindung nun frei. ich würde mich aber freuen, wenn ein Produzent mir eine Variante schenken und mich als Urheber nennen würde.

This is the publication of an ideafor a fine-tuner for the E-string of a violin. Because a patent is forcing too much effort and a producing company rejected my offer for an exclusive use, I let it free for the globe. If anybody performes a manufactoring, I would look forward for one itam as sample as donation. And I would apreceate, if I would be mentioned as the inventor.

Feinstimmer-KiPatent-01 (Klein)

Die Saite wird in der Variante “Schlinge” durch das Loch gefädelt. Unter dem Saitenhalter befindet sich ein Ausleger, der nicht am Saitenhalter befestigt sein muss. (Wird eine Befestigung vorgesehen, verteuert das die Konstruktion sehr und erzeugt mehr Masse.) Auf dessen Stange wird die Schlinge gefädelt und der Ausleger parallel zur Saite laufend positioniert. Der Zug des Wirbels zieht die Saite und damit den Ausleger gegen die Justierschraube vertikal hoch, fixiert, sichert und justiert damit den Ausleger, der bis dahin festgehalten werden muss. Der Zug geht durch die Nut des Loches und über den Sattel des Saitenhalters, wodurch die Saitenlänge einer nicht feingestimmten Saite entspricht.

Vorteil: Sehr leicht, Saitenlänge korrekt
Nachteil: Montage aufwändig; Decke ist zu schützen
Zeichnungen unter https://drive.google.com/open?id=1jBeN_beyAeUS4Brcp3bc0cAc8yth31d7

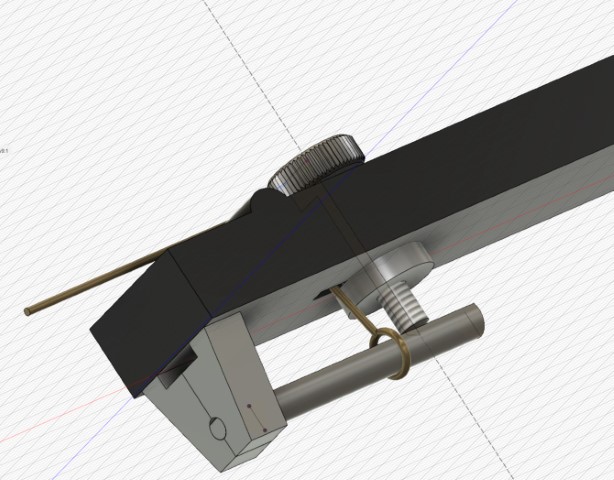

Feinstimmer-KiPatent-02 (Klein)

The string is guided through the hole in the variant "loop". Under the tailpiece is a boom that does not need to be attached to the tailpiece. (If an attachment is provided, the construction becomes more expensive and produces more mass.) The loop is threaded on the rod and the boom is positioned parallel to the string. The pull of the peg pulls the string up the boom vertically against the adjusting screw, fixes, secures and adjusts the boom, which until then has to be handheld. The pulling tension goes through the groove of the hole and over the saddle of the tailpiece, whereby the string length corresponds to a non-fine-tuned string.

Advantage: Very light, string length correct.
Disadvantage: assembly consuming; front is to be protected
drawings at https://drive.google.com/open?id=1jBeN_beyAeUS4Brcp3bc0cAc8yth31d7
